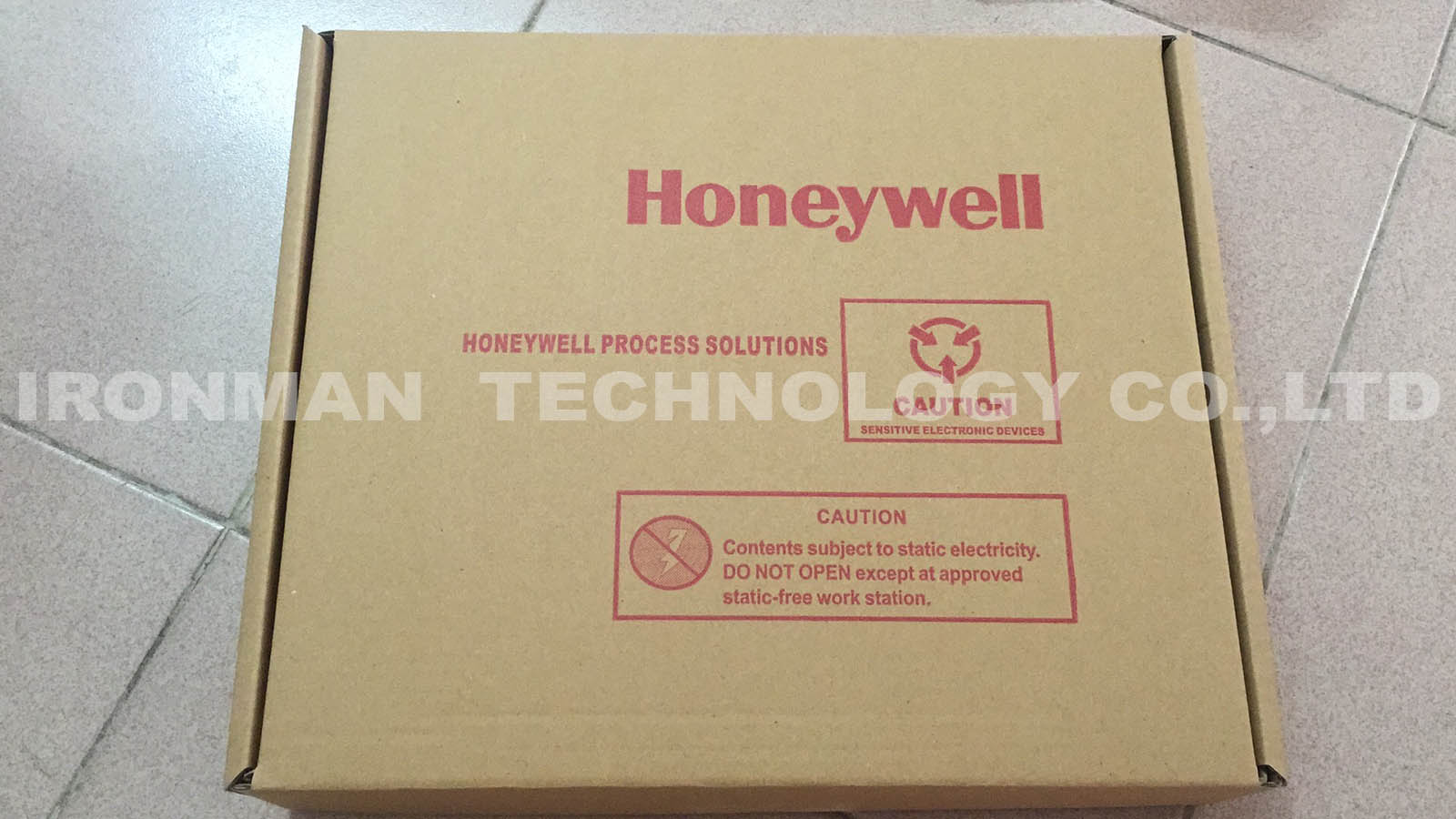

51305508-200 PWA XLCNE2 MULTIMODE Honeywell new in box by DHL
Lead time:3-5 days
New with one year warranty
The Universal Process Cabinet (UPC) allows the Series-C Universal I/O to be installed in a remote location. The UPC protects Universal I/O equipment, power supplies, Fiber Optic Extenders (FOEs), and Terminal Block assemblies remotely located from the Experion C300. The UPC is Ingress Protection-rated (IP66-rated). The following two versions of UPC enclosures are available. • Painted carbon steel – Indoor use only • Stainless steel 316 – Indoor or outdoor use These versions permit UIO products to be installed at a remote location. These cabinets are provided with a removable gland plate. To maintain the IP66-rating of the cabinet, appropriate-sized holes for cable entries are required to conform with the rules and regulations of the local authority by utilizing, for example, IP66-rated conduit fittings or cable glands. This cabinet is supplied with mounting brackets fabricated with 316 SS. When all of the assemblies are mounted in the SS UPC enclosure and the doors are closed and securely locked, then the system meets the GX (Harsh) operating conditions. Class GX is a severity level according to “ANSI/ISAS71.04-1985; Environmental Conditions for Process Measurement and Control Systems: Airborne Contaminants. ”
UPC benefits The following are some of the benefits of UPC. • Easy to locate and control; in addition, helps eliminate marshaled wiring. • Accommodates more input/output modules in a single Remote Instrument Enclosure (RIE). • Available for standard layouts; that is, the components are pre-configured in the cabinet thereby reducing the engineering effort involved in customizing the cabinets. • Allows the displacement of other controller and PLC components and hence allows a complete view of the process environment. In Greenfield projects, the UPC can deliver a faster and more efficient startup and minimize the time spent on site. In Brownfield projects, the UPC can be mounted remotely in the field, thus avoiding central control rooms that are already full or are very difficult to maintain due to years of incremental changes.
UPC features The following are some of the features of UPC. • IP66 316 stainless steel cabinets and painted carbon steel cabinets • Series-C Hazardous Location (HAZLOC) approvals • Maximum of 64 redundant UIO points • Extended temperature ranges of -40ºC to +55ºC (316 stainless steel) and -30ºC to +55ºC (painted carbon steel) with no external cooling or heating. Refer to “About heat dissipation in the cabinet” in the Planning section for further information regarding temperature ranges and configuration allowances. • Document holder on the inside of the door • This product supports FOE “leapfrogging” to enable cabinet-to-cabinet connection • This product supports AC power “daisychaining” from cabinet to cabinet • Future products will include a Lloyd's Register Marine Type Approval Certification • Future products will include VIPER FTAs
We have good price on AB PLC,Omron PLC and Honeywell C200,C300,model number such like TC/TK/MC/CC/511/512/513/514 and some FC series goods,
If you have other enquiry,pls feel free to let me know.
